nasa EASY NAVTEX

Click on the magnifying glass to see the zoom

nasa EASY NAVTEX

Reference : NMENAV

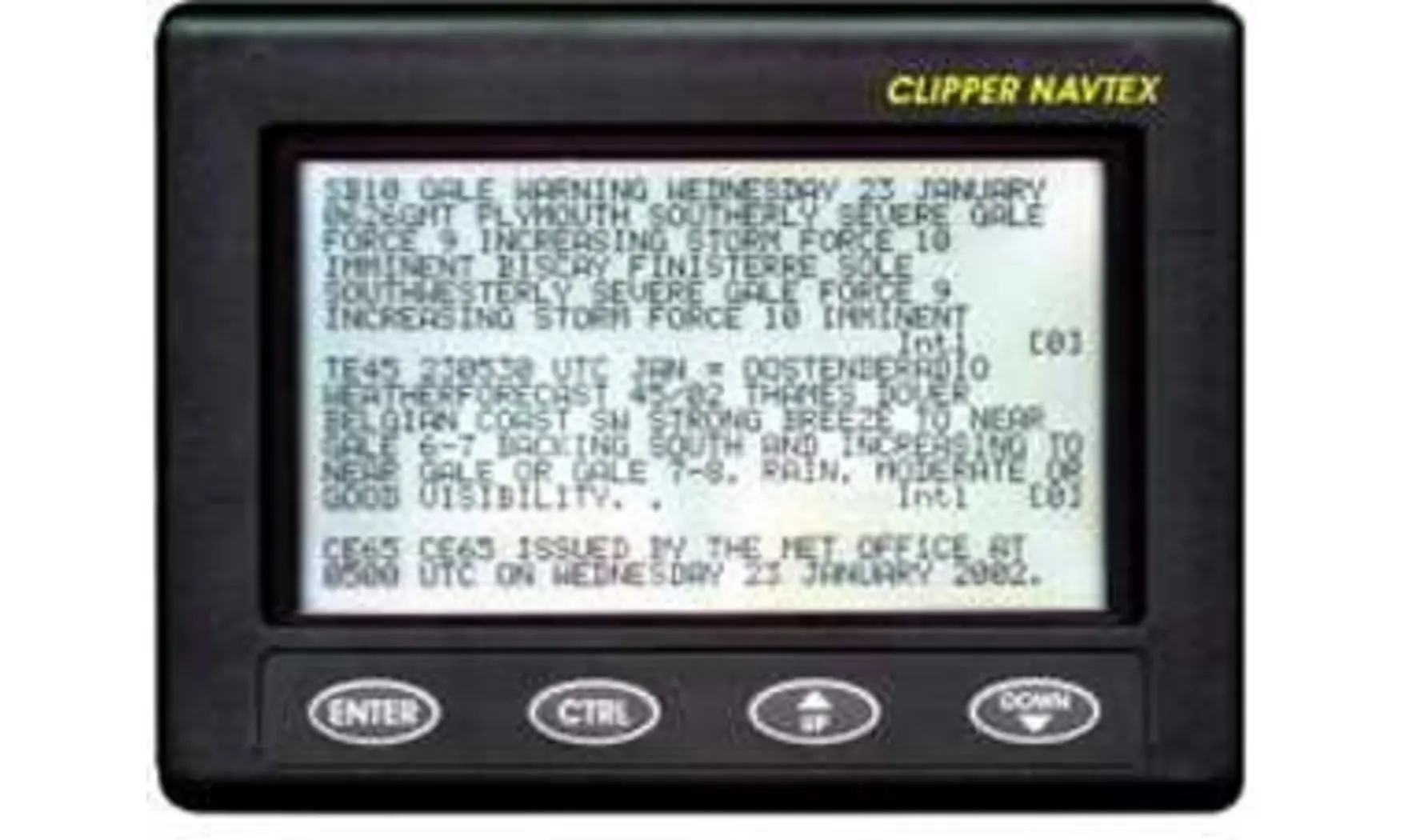

Easy to read. This new navtex receiver features big, bold characters and intuitive message formatting.
Easy to program. Simple menus let you select which stations and which message categories you want to receive.
Easy on your battery. Its low power consumption and power saver mode on the backlight ensure minimum current drain.
Easy channel switching. Programmable automatic switching between the 518Khz and 490Khz channels. No more getting up early to switch channels.
Easy signal analysis. The built in spectrum analyser shows the signal in real time whilst you are receiving messages.
Easy Navtex is designed for panel mounting and is supplied with antenna, power cable and dust cover.

Technical Specifications
• Non volatile program memory
• 518 & 490 kHz operation with programmable channel switching
• Display size: L-150mm, H-112mm, D-42mm,
• Compact panel mount display (stirrup mount bracket available)
• Large letters for easy viewing
• Built in real time spectrum analyser
• Very high contrast display with white backlight
• Power save auto timer on backlight
• Signal quality indicator and message error counter
• Supply voltage nominal 12V
• Consumption 50mA @ 12V (100mA with backlight)
• Active micro antenna: H-195mm & 7m cable
• Optional rail mount bracket

Options

379.00 EUR

Rating

No comments Read or write a comment

Recommended product for nasa EASY NAVTEX

Antenna rail mount bracket

24.90 EUR

14 tpi 25mm Rail Mount Bracket

14.90 EUR
