EX-1 exhaust temperature monitor/alarm

EX-1 exhaust temperature monitor/alarm
 Click on the magnifying glass to see the zoom
EX-1 exhaust temperature monitor/alarm
Reference : NMEXH

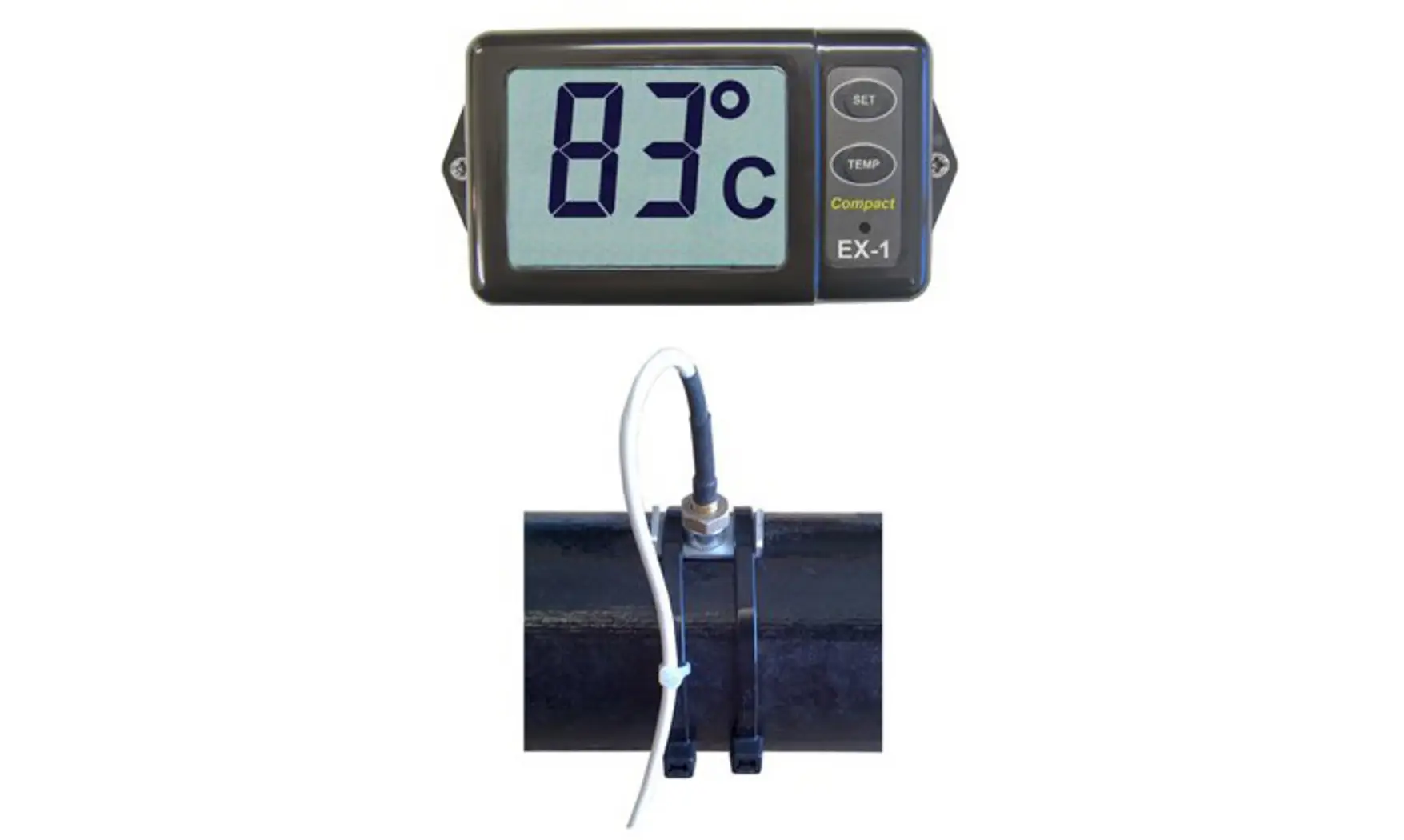

The EX-1 continually displays the exhaust gas temperature in wet exhaust systems giving advanced warning of potential problems.

The EX-1 measures the exhaust gas temperature directly and displays it in degrees centigrade or Fahrenheit. Once the normal working temperature has been established a maximum temperature, a few degrees higher, can be programmed into the EX-1 which will then sound an alarm if that temperature is exceeded.Even a small rise in temperature can indicate a potential problem such as a minor blockage, leak or failing pump which can be corrected before a complete failure occurs.

Technical Specifications

Compact size 125 x 62 x 23mm with high contrast LCD
Supply current less than 1.5mA
Supply Voltage 8 to 15 volts DC.
Supplied with sensor and 5 metre cable
Temperature range -35 to +170 degrees Centigrade.
Threshold range -35 to +170 degrees Centigrade.( -31 to +338 degrees Fahrenheit.)
2025-12-31 129.00129.00 EUR
