Clipper Wind System V2

Clipper Wind System V2
 Click on the magnifying glass to see the zoom
Clipper Wind System V2
Reference : NMCWS

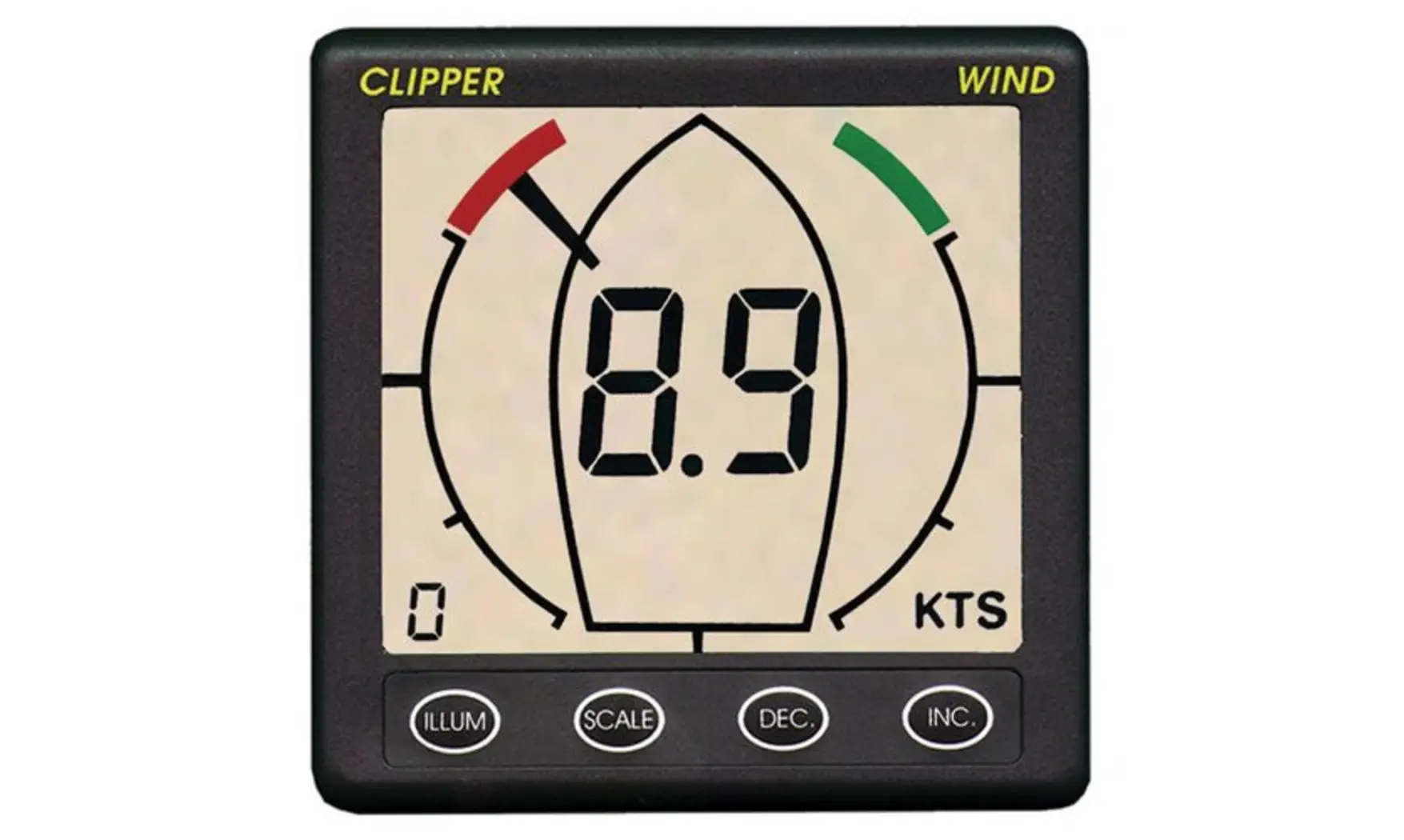

The Clipper Wind system shares the same 110mm square case as its sister instruments in the Clipper range. the display is exceptionally large and clear, with 60 segments for full 360 degree direction indication. Windspeed is shown in knots, M.P.H. or Metres/second. The pointer style is selectable, from the single segment shown above, to multi segments for greater clarity or a ‘windex’ style indicator. The Masthead unit is well proven and supplied with 20 metres of cable as standard

Clipper Wind system is supplied complete with Display unit, masthead unit with cable and mounting blocks.

Technical Specifications

Supply voltage Nominal 12v DC
Consumption, 50mA+ (25mA for display illumination max)
NMEA 0183 output sentence MWV
Keypad adjustment of masthead alignment
7 levels of display backlighting
Display case size 110 x 110mm
Depth behind panel 30mm
Anemometer head 210 x 140mm
5 and 20 metre Extension cables available
